Regular price $199.99 Sale price $99.99
Shipping calculated at checkout.

Product Feature:

  • Larger current, max current up to 100A, continuous operating current of up to 60A.
  • Reversing control motor, dual relay control, can withstand higher current.
  • Programmable to meet subsequent extensions.
  • Soft start to reduce the large current shock.
  • Brake after power off.
  • Controlling the motor speed by the foot.


Technical Specifications:

Power requirement: DC 10-50V



Rated current: 60A (Maximum output current: 100A)



Frequency: 15kHZ



Control Motor Power: 0.01-5000W,



12V: 1200W(max), 24V: 2400W(max) , 36V: 3600W(max), 48V: 4800W(max)



Standby current: 0.01A



Regulation range: 0-100%



Controller Size: 145 x 78 x 38 mm



How to use:

  • There are two ON/OFF switches on the controller. One is power switch, another is reversal switch.
  • The power switch is on, the controller is powered on. The power switch off, the motor will be brake.
  • The reversal switch on, the motor forward, the switch off, the motor backward.
  • When you press the pedal, the motor will accelerate.


Note: the pedal comes without the fix screw.



Package include:

1 X Reversible DC Motor Speed Controller

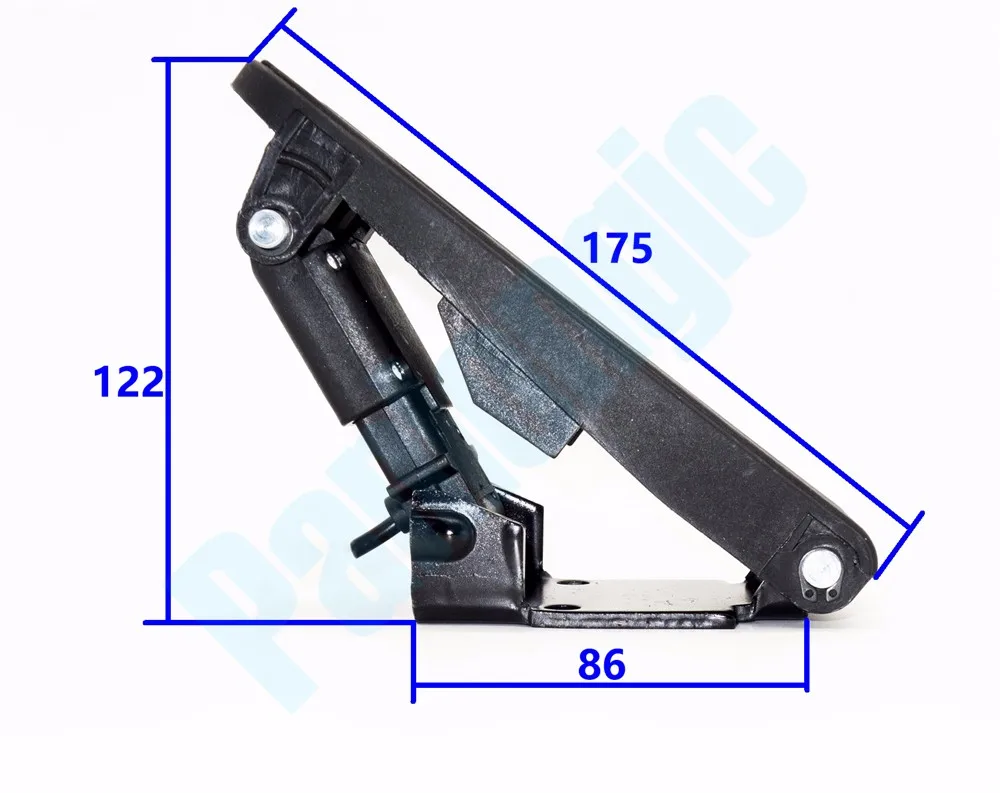

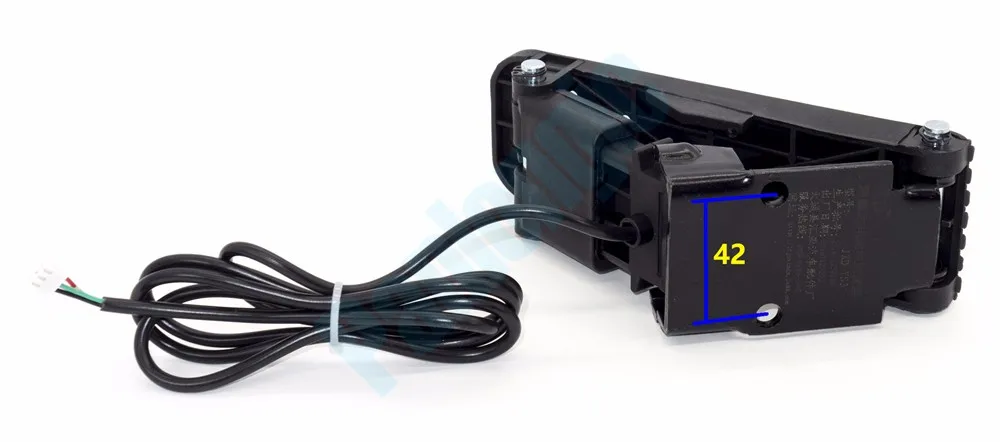

1 X Foot Pedal Hall Throttle




Please check pictures for more details.
